本機是一款新型全電腦控制系統，高速膏藥打孔機生產線，采用國內外先進技術，設備運行中，電腦全程監測.

The equipement is a new and full computer control system, it is a high-speed production line, uses of advanced technology from abroad, in the operation, the computer system monitoring the whole production.

1.KC-FCP--I高速打孔機,速度每分鐘0-20米，操作只需一人，是目前間歇打孔設備的2-3倍產能。

Production speed is 20meter/minute, only needs one operator.

2.設備運行中結合自動相位，前后位置自動調節藥帶產品的中 心位置。以及糾偏運動系統控制，保證設備高速運轉中的穩定性

The equipment can adjusted the medical pads to a right position automatically. Rectifying movement system control, ensure the stability of the equipment in high-speed operation.

3.滾dao選用粉末高速鋼為材質，加工執dao，設備更換模具規格時只需20分鐘，dao具安裝好后，只需在電腦上輸入需要的規格，即可正常生產。

The materials of  hobs are powder high-speed steel. The replacement band-aid specification only needs 20minutes, after cutting tool installation, just input the size that you are needed on the touch screen, it can producing normally.

4.原材料防卷裝置，采用磁粉制動，和磁粉離合自動控制張力。

Prevent rolling devices is uses of magnetic powder, along-with magnetic powder clutch, it can adjusted tension automatically, can ensure the equipment running stability at the high speed.

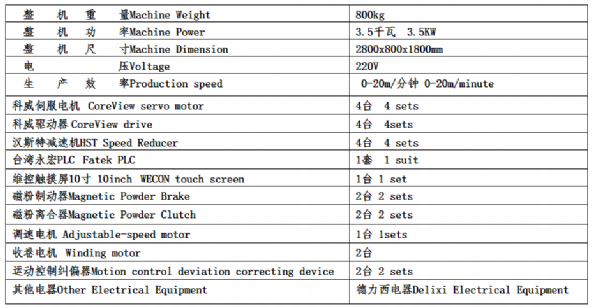

5詳細參數配置；Main Technical Parameters:
